The Wccftech Test Bench
We used the following test system for comparison between the different graphics cards. The latest drivers that were available at the time of testing were used from AMD and NVIDIA on an updated version of Windows 10. All games that were tested were patched to the latest version for better performance optimization for NVIDIA and AMD GPUs.

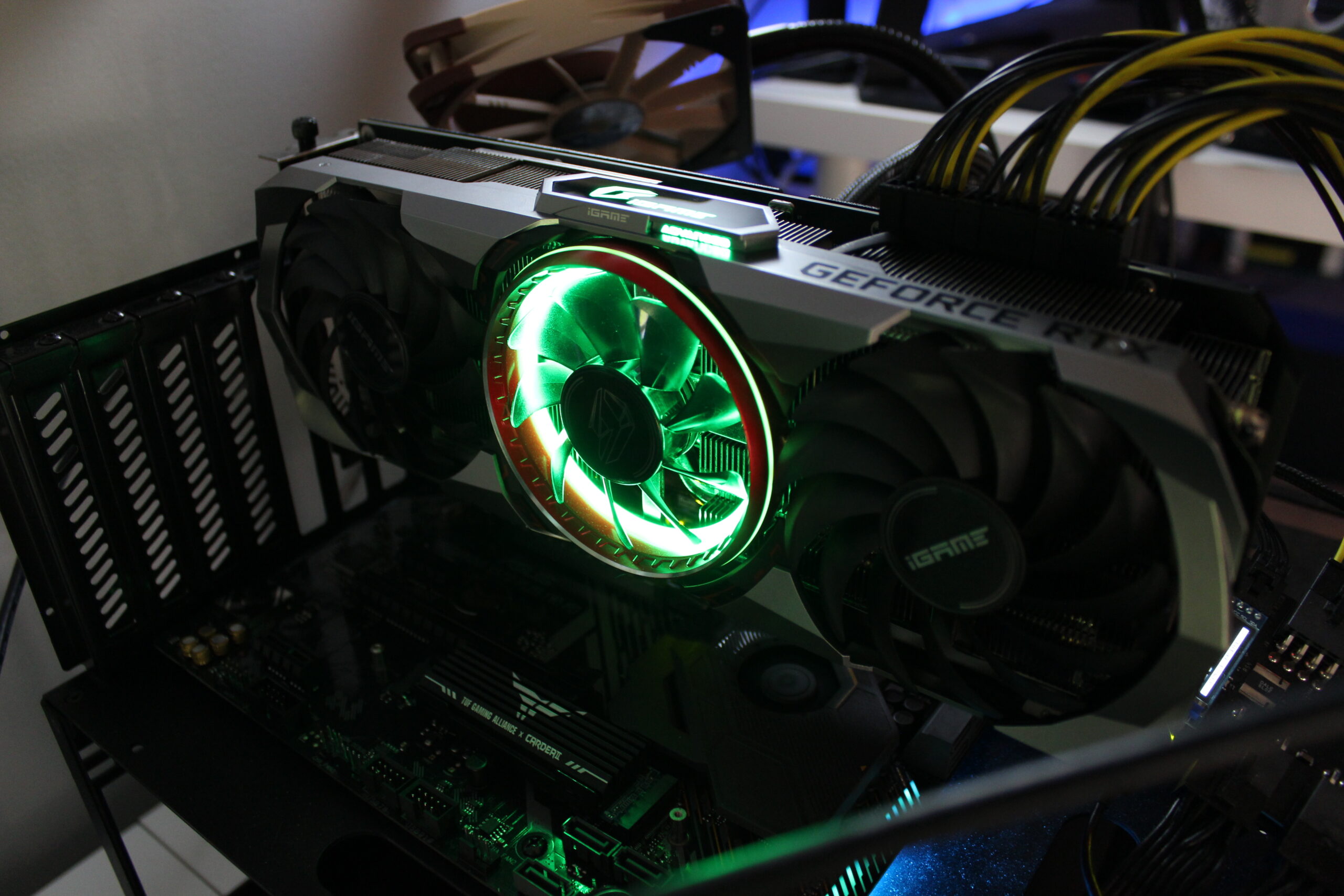

We did all our testing with the Turbo Button engaged for 1785MHz Boost, when disengaged it performs identical to the Founders Edition but at cooler temps.
CPU Ryzen 9 3900X 4.3GHz All Core Lock (disable one CCD for 3600X Results)
Memory 32GB Hyper X Predator DDR4 3600
Motherboard ASUS TUF Gaming X570 Plus-WiFi
Storage TeamGroup Cardea 1TB NVMe PCIe 4.0
PSU Cooler Master V1200 Platinum
Windows Version Latest verion of windows at the time of testing
Hardware-Accelerated GPU Scheduling On if supported by GPU and driver.
Graphics Cards Tested
GPU Architecture Core Count Clock Speed Memory Capacity Memory Speed
COLORFUL iGame RTX 3080 Advanced Ampere 8704 1440/1785 10GB GDDR6X 19Gbps
NVIDIA RTX 3080 FE Ampere 8704 1440/1710 10GB GDDR6X 19Gbps
NVIDIA RTX 2080ti FE Turing 4352 1350/1635 11GB GDDR6 14Gbps
NVIDIA RTX 2080 SUPER FE Turing 3072 1650/1815 8GB GDDR6 15.5Gbps
NVIDIA GTX 1080 FE Pascal 2560 1607/1733 8GB GDDR5X 10Gbps
AMD Radeon RX 5700XT Navi 10 2560 1605/1755/1905 8GB GDDR6 14Gbps
Radeon Settings 20.8.3
All games were tested on 3840x2160 (4K) resolution.
Image Quality and graphics configurations are provided with each game description.
The "reference" cards are the stock configs.
