"Wait for Big Navi". That's what they said, for quite some time. We thought it was coming sooner but here it is. What was referred to for so long as 'Big Navi' is now known as the Radeon RX 6800 Series, plus the RX 6900XT but that's in a whole different category and now known as 'Biggest Navi'. We've got our hands on the upcoming Radeon RX 6800 Series in order to see what AMD was bringing to the table this generation. And while we can't discuss performance numbers or anything juicy like that today we can get a quick look at the cards themselves.

RX 6800 Series In The Flesh

If there is anything I can commend AMD on this go it has to be the presentation. This is something that a lot of people don't consider but when you're shelling out well past $500 for a graphics card you want the red carpet treatment. While the RX 6800 presents itself in a bit less premium light the RX 6800XT lays it all out and lets you know you've made an investment.

Final Fantasy XV Reaches Tabata’s Lifetime Sales Target of 10 Million Copies Worldwide

The cards themselves are quite well built. Up until now I have been overtly partial to the build of the Radeon R9 295x2 and felt all the cards since then have had a uniquely 'less than premium' look and feel to them. That changes with the RX 6800 Series. These cards are hefty, solid, and very clean looking. If I had to gripe about anything it would be the big red ring around the outside. The cards have such a nice muted matte finish with just the right amount of flash on the chrome bits and then go put a big ol red ring wrapping the entire portion you'll see through the side window. Maybe clean that up and powder coat the rear I/O and you'll have the most stunning-looking reference design that AMD has ever laid out.

Comparing to the corduroy design of the RX 5700 XT They've clearly come a long way in making an attractive design that should appeal to more people than just the die-hard fans.  If you look closely you'll find a hint of a dent, although it looks much more natural this time.

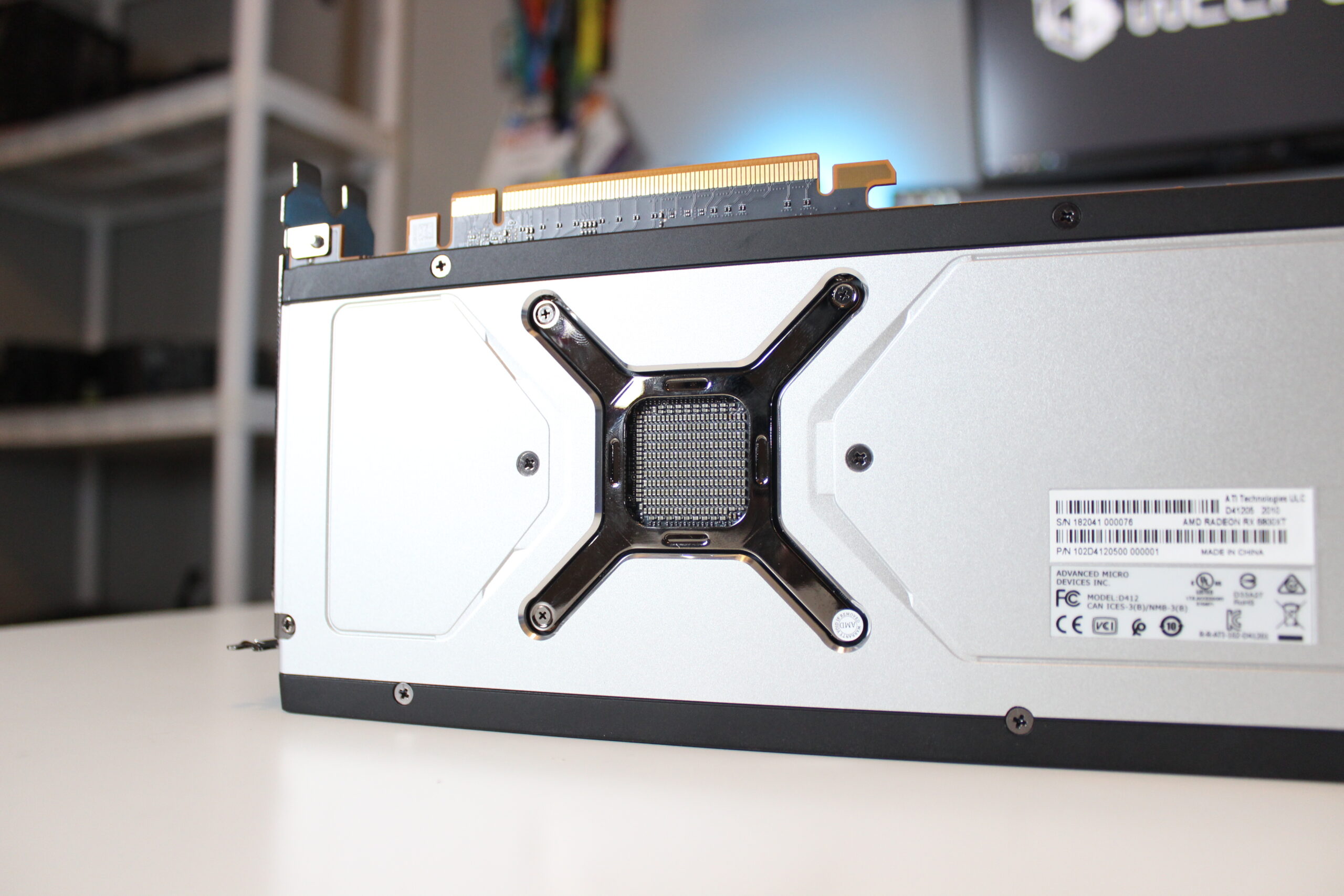

Oh, and for those who want a close up on the back of the chip.



Unreal Engine 5 Powered EzBench Benchmark Let’s You Put Your Graphics Card Through Its Paces With 8K Textures & Raytracing

RX 6800 Series Hands-On Video

AMD Radeon RX 6800 XT "Big Navi 21 XT" GPU Powered 16 GB Graphics Card

The AMD Radeon RX 6800 XT will come packed with the Navi 21 XT GPU which is a cut-down SKU featuring 72 Compute Units or 4608 SPs. The card will also feature 16 GB of GDDR6 memory across a 256-bit bus interface, a 512 GB/s total bandwidth, and clock speeds of 2015 MHz base and 2250 MHz boost at reference specs. The AMD Radeon RX 6800 XT also packs 72 Ray Accelerators which are dedicated to real-time raytracing workloads. The card will feature a based TBP of 300W with factory-overclocked models pushing it above 350W and will arrive at a later date.

In addition to the standard memory, the Radeon RX 6800 series graphics cards will also feature 128 MB of Infinity Cache on the GPU die. The cache will help boost bandwidth for higher performance at resolutions beyond 1080p HD. The 128 MB Infinity Cache boosts the standard 512 GB/s bandwidth by 3.25x, delivering an effective bandwidth of up to 1.664 TB/s across all Big Navi GPU based graphics cards.

In terms of performance, the AMD Radeon RX 6800 XT is shown to compete against the GeForce RTX 3080 graphics card. The card features a 20W lower total board power & delivers better GPU performance in several AAA titles using the best API (Vulkan / DirectX 12). AMD is also bringing its Rage-mode back which is an automatic overclocking tool within its Radeon Software suite which delivers even higher performance along with a nifty new feature known as Smart Access. Gains of up to 13% were showcased with the said features as can be seen below.

AMD Radeon RX 6800 "Big Navi 21 XL" GPU Powered 16 GB Graphics Card

The AMD Radeon RX 6800 graphics card will feature an even more cut down Navi 21 "Big Navi" GPU with 60 Compute Units of 3840 stream processors. The AMD Navi 21 XL GPU is going to feature clock speeds of 1815 MHz game and 2105 MHz boost clocks at reference specs.

It was also stated that the AMD Radeon RX 6800 with Navi 21 XL GPU could feature a TBP of 250W at stock clocks. The card will feature the same VRAM config of 16 GB GDDR6 memory, a 256-bit bus interface with the memory clocking in at 16 Gbps which will deliver a net bandwidth of 512GB/s.

The AMD Radeon RX 6800 will be featuring performance faster than the GeForce RTX 2080 Ti with smart access memory feature enabled. The graphics card will be ideally positioned against the RTX 3070 for just a $79 US higher price, yet offering much better performance and twice the memory of its main competition.

AMD Radeon RX 6000 Series "RDNA 2" Graphics Card Lineup:

Graphics CardAMD Radeon RX 6950 XTAMD Radeon RX 6900 XTAMD Radeon RX 6800 XTAMD Radeon RX 6800AMD Radeon RX 6750 XTAMD Radeon RX 6700 XTAMD Radeon RX 6650 XTAMD Radeon RX 6600 XTAMD Radeon RX 6600AMD Radeon RX 6500 XTAMD Radeon RX 6400
GPUNavi 21 KXTXNavi 21 XTXNavi 21 XTNavi 21 XLNavi 22 KXTNavi 22 XTNavi 23 KXTNavi 23 (XT)Navi 23 (XL)Navi 24 (XT)Navi 24 (XL)
Process Node7nm7nm7nm7nm7nm7nm7nm7nm7nm6nm6nm
Die Size520mm2520mm2520mm2520mm2336mm2336mm2237mm2237mm2237mm2107mm2107mm2
Transistors26.8 Billion26.8 Billion26.8 Billion26.8 Billion17.2 Billion17.2 Billion11.06 Billion11.06 Billion11.06 Billion5.4 Billion5.4 Billion
Compute Units8080726040403232281612
Stream Processors5120512046083840256025602048204817921024768
TMUs/ROPs320 / 128320 / 128288 / 128240 / 96160/64160/64128/64128/64112/6464/3248/32
Game Clock2116 MHz2015 MHz2015 MHz1815 MHz2495 MHz2424 MHz2410 MHz2359 MHz2044 MHz2610 MHz2039 MHz
Boost Clock2324 MHz2250 MHz2250 MHz2105 MHz2600 MHz2581 MHz2635 MHz2589 MHz2491 MHz2815 MHz2321 MHz
FP32 TFLOPs23.80 TFLOPs23.04 TFLOPs20.74 TFLOPs16.17 TFLOPs13.31 TFLOPs13.21 TFLOPs10.79 TFLOPs10.6 TFLOPs9.0 TFLOPs5.7 TFLOPs3.5 TFLOPs
Memory Size16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache12 GB GDDR6 + 96 MB Infinity Cache12 GB GDDR6 + 96 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache4 GB GDDR6 + 16 MB Infinity Cache4 GB GDDR6 + 16 MB Infinity Cache
Memory Bus256-bit256-bit256-bit256-bit192-bit192-bit128-bit128-bit128-bit64-bit64-bit
Memory Clock18 Gbps16 Gbps16 Gbps16 Gbps18 Gbps16 Gbps17.5 Gbps16 Gbps14 Gbps18 Gbps14 Gbps
Bandwidth576 GB/s512 GB/s512 GB/s512 GB/s432 GB/s384 GB/s280 GB/s256 GB/s224 GB/s144 GB/s112 GB/s
TDP335W300W300W250W250W230W176W160W132W107W53W
Price$1099 US$999 US$649 US$579 US$549 US$479 US$399 US$379 US$329 US$199 US$159 US?

AMD Radeon RX 6000 Series Graphics Cards Pricing & Availability

The AMD Radeon RX 6900 XT graphics cards will be available starting the 8th of December. The AMD Radeon RX 6900 XT is said to carry a price tag of $999 US and is expected to be a reference only model for this year unless AMD gives its AIB partners a greenlight for custom variants which may be in the plans. The RX 6800 XT and RX 6800 will be launching in the retail market on 18th November for $649 US and $579 US, respectively.
