PCIe Gen 4.0 is all the rage these days with AMD having fully embraced it on their X570 and B550 platforms (less so on the latter) and with Tigerlake parts supporting it for storage on the Intel side it's nice to see some more cost-conscious drives making their way to the market. While we do have faster controllers than the Phison E16 on the way, it doesn't mean it's a slouch today or something to worry about, especially in this price range. The Silicon Power US70 PCIe Gen 4.0 drive does offer a lot of value at comparable pricing to other Gen 3.0 high-performance drives at the same price point coming in at $164.99 for the 1TB we're looking at today.

Feature-wise the Silicon Power is fairly loaded from a DRAM Cache Buffer to SLC Caching. Some of the more intricate features include Wear Leveling where the drive equalizes the wear of each NAND flash block to limit the chance of damage or data loss over time. Over-Provision is present here in harmony with the Wear Leveling to help extend the useful lifespan of the drive. Bad Block management, or BBM as Silicon Power calls it, is able to detect and mark back blocks so that the drive avoids using them further ensuring long term reliability.

Related StoryAlex Casas
XMG Unveils The NEO 15 & NEO 17 Featuring The Intel 11th Gen Tiger Lake-H Series CPUs & NVIDIA GeForce RTX 30 Series GPUs

First Look At Silicon Power US70 1TB – Unboxing And Closer Look

The packaging of the Silicon Power US70 is the standard affair ready to hang on the shelf at a computer parts store. Ther is a nice window so that you're able to get a good look at the drive itself when picking out your purchase selection in person. That's about as far as the usefulness of the package goes. There's nothing to indicate performance metrics outside of knowing it's a Gen 4.0x4 drive and that it's NVMe 1.3 compatible. The warranty information is there, but nothing else. Hopefully in the future, they want to let potential customers know what they're offering in performance because their competition certainly is

img_4381
img_4382
img_4383

The drive itself, it's blue. Now I know there are going to be people out there railing on the color and asking why there's no heatsink, but this isn't all bad. The Drive is covered by a large black sticker that will hide most of the blue PCB when installed in a typical system, but so many motherboards now come with built-in heatsinks on the board that I can understand this not bothering many people as it'll be covered anyway. If that isn't the case then you might want to either look at another drive with a heatsink or picking one up alongside if this is going to be your primary drive

img_4384
img_4385
img_4386

Just for an example of the above discussion, this is that drive installed in my personal system in the primary PCIe Gen 4.0 Slot with an Adata SX8200 Pro 2TB as well and the result is clean as can be when done this way.

Silicon Power US70 PCIe Gen 4.0

Capacity1TB, 2TB
InterfacePCIe Gen 4x4
Performance Read Peakup to 5,000 MB/s
Performance Write Peakup to 4,400 MB/s
Meantime Between Failure1,700,000 hours
Warranty5 Year



Testing Setup

Our test bench is now using the Ryzen 9 3900X on the ASUS TUF Gaming X570 Pro-WiFi so that now we have access to be able to take PCIe Gen 4 drives into account. We have the Ryzen 9 3900X clocked at 4.3GHz all core with the Hyper X Predator DDR4 3600 CL17.  Before starting the tests I loaded the NVMe drive up to 60% capacity so that the testing would not be run on a clean empty drive.

ComponentModel
CPUAMD Ryzen 9 3900X @ 4.3GHz All Core
MotherboardASUS TUF Gaming X570 Pro-WiFi
MemoryHyper X Predator 2x16GB (32GB) 3600MHz CL17
PSUCooler Master V1200P
OSWindows 10-64 Bit
GPUNVIDIA GeForce RTX 2080 Ti FE
CaseLian Li T70X

Silicon Power US70 PCIe Gen 4.0 NVMe 1TB

ATTO Disk Benchmark

As the industry’s leading provider of high-performance storage & network connectivity products, ATTO has created a widely-accepted Disk Benchmark freeware software to help measure storage system performance. As one of the top tools utilized in the industry, Disk Benchmark identifies performance in hard drives, solid-state drives, RAID arrays as well as the host connection to attached storage. Top drive manufacturers, like Hitachi, build and test every drive using the ATTO Disk Benchmark.

The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host bus adapters (HBAs), hard drives, and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

ATTO Write
512B
1KB
2KB
4KB
8KB
16KB
32KB
64KB
128KB
256KB
512KB
1MB
2MB
4MB
8MB
0
700
1400
2100
2800
3500
4200
0
700
1400
2100
2800
3500
4200
Silicon Power Gen4 1TB
51
101
194
401
774
1.5k
2.8k
3.7k
3.9k
3.9k
3.9k
3.9k
3.9k
3.9k
3.9k
T-Force Cardea Gen4
39
81
161
357
607
1.2k
2.4k
3.6k
3.9k
3.9k
3.9k
3.9k
3.9k
3.9k
3.9k
HP EX950 1TB NVMe
65
142
285
556
1k
1.7k
2.3k
2.5k
2.7k
2.8k
2.8k
2.8k
2.8k
2.8k
2.8k
T-Force Cardea II TUF Gaming
50
100
207
399
767
1.4k
2.4k
2.8k
2.8k
2.8k
2.8k
2.7k
2.8k
2.8k
2.8k
Kingston KC2500 1TB NVMe
68
135
278
547
982
1.6k
2.2k
2.4k
2.5k
2.6k
2.6k
2.6k
2.6k
2.6k
2.6k
Samsung 970 Evo Plus 1TB NVMe
75
148
288
552
1.2k
2.2k
2.9k
3k
3k
3k
3k
3k
3k
3k
3k
WD Black SN750 1TB NVMe w/HS
10
30
68
610
1.1k
1.9k
2.7k
2.8k
2.8k
2.8k
2.8k
2.8k
2.8k
2.8k
2.8k
ATTO Read
512B
1KB
2KB
4KB
8KB
16KB
32KB
64KB
128KB
256KB
512KB
1MB
2MB
4MB
8MB
0
1000
2000
3000
4000
5000
6000
0
1000
2000
3000
4000
5000
6000
Silicon Power Gen4 1TB
46
95
185
424
834
1.6k
2.5k
2.8k
4.5k
5.3k
5.2k
5.2k
5.1k
5.1k
5.1k
T-Force Cardea Gen4
44
88
172
356
660
1.4k
2.5k
2.8k
4.5k
5.2k
5.3k
5.2k
5.2k
5.2k
5.2k
HP EX950 1TB NVMe
75
150
323
626
1k
2k
2.6k
2.7k
2.9k
3.1k
3.1k
3.1k
3.1k
3.1k
3.1k
T-Force Cardea II TUF Gaming
51
102
213
443
797
1.5k
2.4k
2.8k
2.8k
2.9k
2.9k
2.9k
2.9k
2.9k
2.9k
Kingston KC2500 1TB NVMe
76
157
330
645
1k
2.8k
3k
3.1k
3.1k
3.1k
3.1k
3.1k
3.1k
3.1k
3.1k
Samsung 970 Evo Plus 1TB NVMe
74
150
317
597
1.1k
2.4k
2.8k
3k
3.1k
3.1k
3.1k
3.2k
3.3k
3.2k
3.2k
WD Black SN750 1TB NVMe w/HS
12
24
52
414
644
895
1.8k
2.1k
2.3k
2.7k
3.1k
3.3k
3.3k
3.3k
3.3k

Crystal Disk Mark 6.0

CrystalDiskMark is a disk benchmark software Made by a Japanese coder named Hiyohiyo and is one of the simplest and most frequently used tests for storage due to its simple and easy to understand UI. It measure sequential reads/writes speed,measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speed,select test data (Random, 0Fill, 1Fill).

CrystalDiskMark 6
4KB Q1T1 Read
4KB Q1T1 Write
4KB Q32T1 Read
4KB Q32T1 Write
4KB Q8T8 Read
4KB Q8T8 Write
Sequential Reads
Sequential Writes
0
900
1800
2700
3600
4500
5400
0
900
1800
2700
3600
4500
5400
Silicon Power Gen4 1TB
64
202.6
639.5
598.8
2k
2.2k
5k
4.2k
T-Force Cardea Gen4
61.5
234.6
614
406.5
1.8k
955.4
5k
4.3k
HP EX950 1TB NVMe
65
166
592.6
479.9
1.3k
1.5k
3.5k
3.1k
T-Force Cardea II TUF Gaming
58.7
198.8
648.5
603.7
1.3k
2.3k
3.3k
3k
Kingston KC2500 1TB NVMe
60
154
557
412
1.4k
1.4k
3.5k
2.9k
Samsung 970 Evo Plus 1TB NVMe
50.7
168.1
554.8
467.2
1.5k
2.2k
3.6k
3.3k
WD Black SN750 1TB NVMe w/HS
51.1
184.1
551
431.9
1.7k
2k
3.5k
3k

AS SSD

AS SSD is the opposite of ATTO as it uses incompressible data rather than compressible data and simulates the worst possible scenario imaginable for an SSD which gives the best understanding of performance when pushing the drive to its limits.

We separate the IOPS and MB/s in the results for ease of reading.

AS SSD MB/s
4K Read
4k Write
4KB 64T Read
4KB 64T Write
Sequential Reads
Sequential Writes
0
900
1800
2700
3600
4500
5400
0
900
1800
2700
3600
4500
5400
Silicon Power Gen4 1TB
77.6
185
2.2k
3.5k
4.2k
3.8k
T-Force Cardea Gen4
74.8
199.2
2.2k
3.1k
4.2k
4k
HP EX950 1TB NVMe
65.9
184
1.3k
1.3k
3k
2.6k
T-Force Cardea II TUF Gaming
68.6
175.2
1.7k
2.8k
2.8k
2.8k
Kingston KC2500 1TB NVMe
61.2
178.4
1.4k
1.3k
3k
2.5k
Samsung 970 Evo Plus 1TB NVMe
54.5
187.1
1.6k
2.4k
3k
2.9k
WD Black SN750 1TB NVMe w/HS
50.4
201.2
1.7k
2.1k
3.1k
2.8k
AS SSD IOPS
16MB Read
16MB Write
4K Read
4K Write
512B Read
512B Write
4KB 64T Read
4KB 64T Write
0
146024
292048
438072
584096
730120
876144
0
146024
292048
438072
584096
730120
876144
Silicon Power Gen4 1TB
256.6
235.8
19.9k
47.5k
47.4k
49.3k
577.8k
876.1k
T-Force Cardea Gen4
259.3
243.7
18.5k
51k
10.2k
51.9k
574.2k
860.1k
HP EX950 1TB NVMe
186.5
162.3
16.9k
46.9k
50.1k
48.1k
322.9k
339.1k
T-Force Cardea II TUF Gaming
172.9
171.1
17.5k
40.2k
37.6k
47.1k
452.3k
723.9k
Kingston KC2500 1TB NVMe
187.6
148.3
15.7k
45.7k
48k
46.6k
349.4k
328.3k
Samsung 970 Evo Plus 1TB NVMe
187.3
180.1
14.1k
47.7k
40.7k
50.6k
418.2k
630.6k
WD Black SN750 1TB NVMe w/HS
191.9
172.5
12.8k
51.6k
14.2k
47.6k
428.2k
570.1k

ANVIL's Storage Utilities

Anvil's Storage Utilities benchmark may be a bit of an older benchmark, but it's still very much relevant today.  It takes various performance and response time metrics and gives them a score in read and writes then delivers an overall rating, which is useful to see where an HDD or SSD slots in general performance.

Anvil's Storage Utilities
Read Score
Write Score
Total Score
0
4000
8000
12000
16000
20000
24000
0
4000
8000
12000
16000
20000
24000
Silicon Power Gen4 1TB
7.7k
12.1k
19.8k
T-Force Cardea Gen4
7.6k
11.5k
19.1k
HP EX950 1TB NVMe
6.2k
10k
16.2k
T-Force Cardea II TUF Gaming
5.5k
10.3k
15.8k
Kingston KC2500 1TB NVMe
6.6k
9.4k
16k
Samsung 970 Evo Plus 1TB NVMe
6.6k
10.5k
17.1k
WD Black SN750 1TB NVMe w/HS
6.4k
12k
18.5k

Conclusion

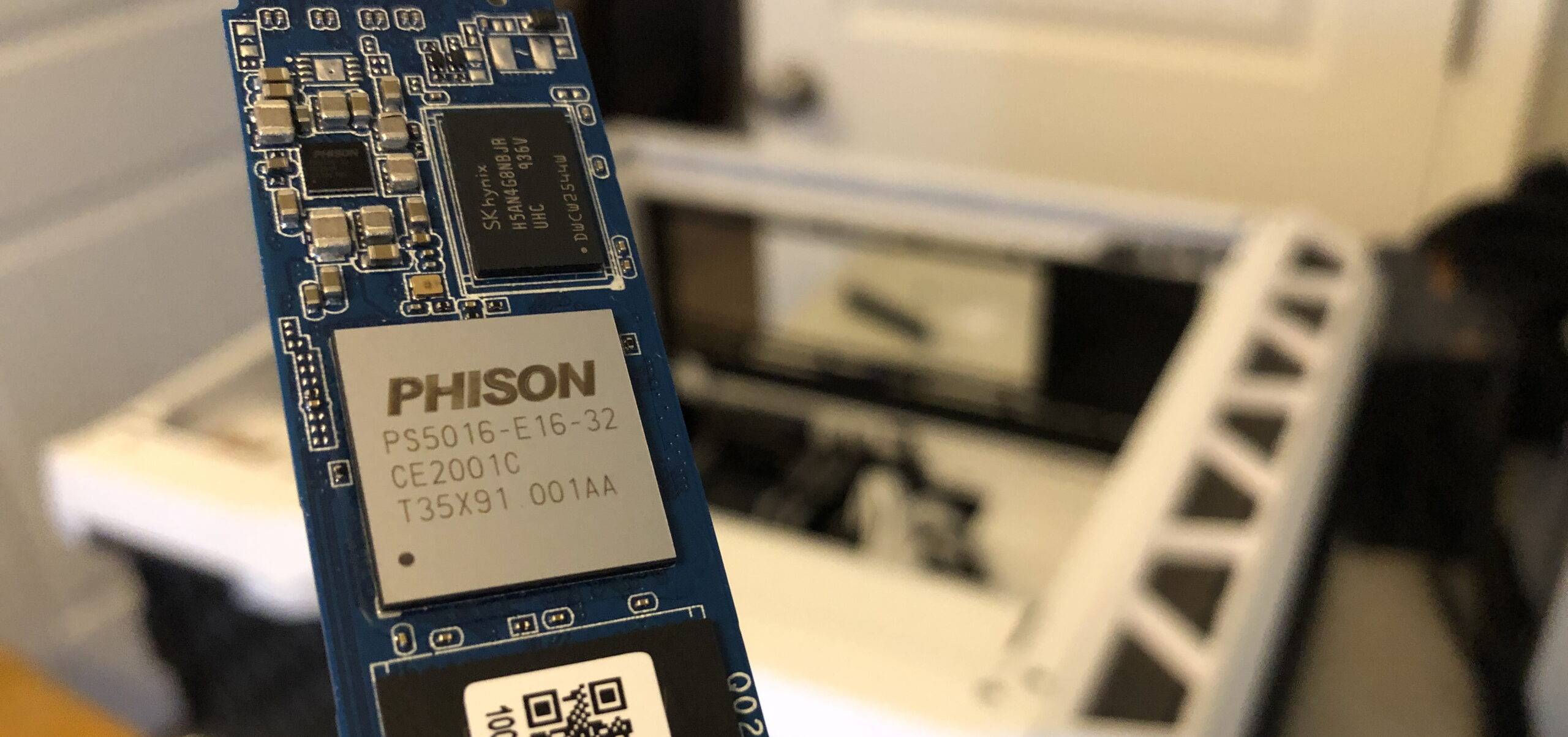

Sure, the Silicon Power US70 PCIe 4.0 NVMe 1TB drive is still rocking the Phison E16 controller and may not be quite as fast as some of the upcoming Gen 4.0 drives are claiming, but it does beat out even the fastest of the Gen 3.0 drives at around the same cost if you're in the market. The packaging may have been a let down with little to no real information on what you're getting but it does manage to deliver on the performance where it counts. The biggest advantage is indeed going to be the bigger file sizes you might be working with.

Your day to day isn't likely going to change a whole lot if you're just buying this as an upgrade over an existing performance PCIe Gen 3.0 drive but if you're building a new system that supports Gen 4.0 drives then you might want to keep an eye on this one. Especially if your new motherboard has a built-in heatsink to hide that ugly blue PCB behind.

Coming in at $164.99 on Amazon right now the Silicon Power US70 delivers great performance for the money and if you can get past, or hide, the bright blue PCB you'll be in for a great user experience.

8.75
Wccftech Rating

The Silicon Power US70 delivers great performance for the money and if you can get past, or hide, the bright blue PCB you'll be in for a great user experience.

Pros
  • Cost effective Gen 4.0 SSD
  • Good performance for the money
  • No frills
  • No heatsink if you don't need it
Cons
  • Poor information on the packaging
  • Blue PCB
  • No heatsink if you need it
