More Radeon RX 6700 Series Details Emerge For A Midrange Powerhouse


The release of the AMD Radeon RX 6800 Series has come as of the past week, and as with most launches, time marches on. People are looking to the next thing they can try and maybe get a chance to actually purchase, and this time it's the Radeon RX 6700 Series. If 'Big Navi' was the Radeon RX 6800 Series, then we might end up referring to the RX 6700 Series as 'Medium Navi' as we're expected to see 'Small Navi' come with whatever they call the Navi 23 lineup of GPUs.

But, thanks to our good and reliable source Patrick Schur over on Twitter and expounded on by VideoCards, we now have a bit better of an idea of what to expect out of the upcoming Radeon RX 6700 Series of graphics cards, which should include the Radeon RX 6700 XT and the smaller Radeon RX 6700.

AMD Software May Update Improves RSR, Boosts DirectX 11 Games [Update: Full Version Out]

Patrick lays out the details on the next installment of Radeon's RDNA2 based graphics cards that will be coming to market, and they look quite promising when it comes to power consumption targets, and we now have a more clear picture of the memory they'll be packing.

  • Navi 22 XT rated at 186-211w TGP (Radeon RX 6700 XT)
  • Navi 22 XTL 146-154w TGP (Radeon RX 6700)
  • Both with 12GB of GDDR6 - 192-bit

These would be the cards designed to replace the existing Radeon RX 5700 Series. That could give us a glimpse regarding expected pricing, but performance will be quite interesting to see since the power budgets are quite close. The improved efficiency of the RDNA2 architecture along with new features should put it comfortably right in between the existing RX 5700 Series and RX 6800 Series.

What will be really interesting to see is how memory performance pans out. Sure, it's on a smaller 192-bit bus, but it could likely be sporting AMD's new Infinity Cache design that really gave the RX 6800 Series an edge at resolutions like 2560x1440. Memory capacity will likely be a non-concern for gamers looking at this line as they'll likely be targeting the ultra-high refresh 1080p or high fidelity 1440p gamers with the combined 12GB of VRAM they'll be packing.

Patrick mentions that Navi 22 XTL could have a lower minimum TGP than 146w, which might have lead VideoCardz to mention that Navi 22 will be coming to notebooks to compete with those featuring GA104 based NVIDIA parts. VideoCardz mentions that the launch window for the Navi 22 based GPUs has been pushed up a bit, and we could expect to see them launching in January of next year (2021).

AMD B650 Series Motherboards Will Feature CPU & Memory Overclocking Support: B650E To Get Mid-Range & High-End Options With Full Gen 5 Support, October Launch

RX 6700 Series

The Radeon RX 6700 series includes the Navi 22 XT based Radeon RX 6700 XT and the Navi 22 XL based Radeon RX 6700 graphics cards. The AMD Radeon RX 6700 XT with the full Navi 22 XT GPU SKU is expected to feature 40 Compute Units or 2560 stream processors, with the Radeon RX 6700 with the Navi 22 XL GPU SKU is expected to feature a cut-down configuration. The graphics card will feature a 12 GB GDDR6 memory buffer along with a 192-bit bus interface. AMD will most likely use 16 Gbps dies, which would net a total bandwidth of 384 GB/s for the cards.

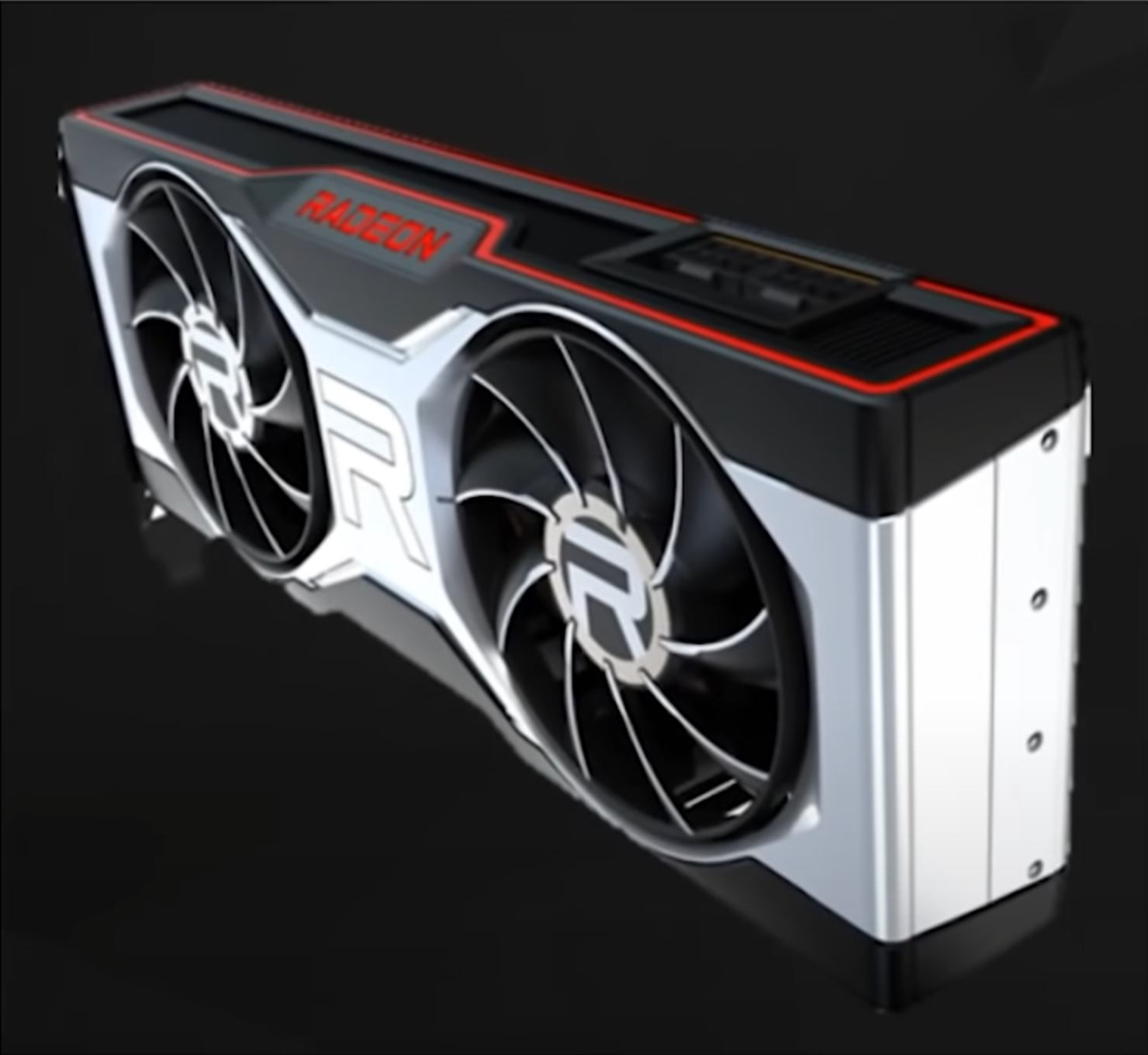

This is likely the card we'll see use the other leaked cooler design (triple fan version came to fruition with Big Navi); the dual-slot card features a design similar to the triple-slot offering but with a slightly compact form factor. This shroud is said to be designed for the AMD Radeon RX 6700 series cards. The card features a dual axial-tech fan design and has the large "R" logo in the middle and on the fans representing the Radeon brand.

The card also features the LED-lit Radeon logo on the sides and has a large cut out to vent out the aluminum heatsink's heat. There are two 8-pin power connectors on the card, but we may also see 8+6 or configurations for the more power optimized variants. The card also comes with a dual-slot form factor and should feature a similar I/O as the Big Navi graphics card. It is expected that this cooler should house the Navi 22 GPU, which is slightly smaller but still larger compared to AMD's Navi 10 (RDNA 1) GPU for the Radeon RX 5700 series graphics cards.

AMD Radeon RX 6000 Series "RDNA 2" Graphics Card Lineup:

Graphics CardAMD Radeon RX 6950 XTAMD Radeon RX 6900 XTAMD Radeon RX 6800 XTAMD Radeon RX 6800AMD Radeon RX 6750 XTAMD Radeon RX 6700 XTAMD Radeon RX 6650 XTAMD Radeon RX 6600 XTAMD Radeon RX 6600AMD Radeon RX 6500 XTAMD Radeon RX 6400
GPUNavi 21 KXTXNavi 21 XTXNavi 21 XTNavi 21 XLNavi 22 KXTNavi 22 XTNavi 23 KXTNavi 23 (XT)Navi 23 (XL)Navi 24 (XT)Navi 24 (XL)
Process Node7nm7nm7nm7nm7nm7nm7nm7nm7nm6nm6nm
Die Size520mm2520mm2520mm2520mm2336mm2336mm2237mm2237mm2237mm2107mm2107mm2
Transistors26.8 Billion26.8 Billion26.8 Billion26.8 Billion17.2 Billion17.2 Billion11.06 Billion11.06 Billion11.06 Billion5.4 Billion5.4 Billion
Compute Units8080726040403232281612
Stream Processors5120512046083840256025602048204817921024768
TMUs/ROPs320 / 128320 / 128288 / 128240 / 96160/64160/64128/64128/64112/6464/3248/32
Game Clock2116 MHz2015 MHz2015 MHz1815 MHz2495 MHz2424 MHz2410 MHz2359 MHz2044 MHz2610 MHz2039 MHz
Boost Clock2324 MHz2250 MHz2250 MHz2105 MHz2600 MHz2581 MHz2635 MHz2589 MHz2491 MHz2815 MHz2321 MHz
FP32 TFLOPs23.80 TFLOPs23.04 TFLOPs20.74 TFLOPs16.17 TFLOPs13.31 TFLOPs13.21 TFLOPs10.79 TFLOPs10.6 TFLOPs9.0 TFLOPs5.7 TFLOPs3.5 TFLOPs
Memory Size16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache12 GB GDDR6 + 96 MB Infinity Cache12 GB GDDR6 + 96 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache4 GB GDDR6 + 16 MB Infinity Cache4 GB GDDR6 + 16 MB Infinity Cache
Memory Bus256-bit256-bit256-bit256-bit192-bit192-bit128-bit128-bit128-bit64-bit64-bit
Memory Clock18 Gbps16 Gbps16 Gbps16 Gbps18 Gbps16 Gbps17.5 Gbps16 Gbps14 Gbps18 Gbps14 Gbps
Bandwidth576 GB/s512 GB/s512 GB/s512 GB/s432 GB/s384 GB/s280 GB/s256 GB/s224 GB/s144 GB/s112 GB/s
Price$1099 US$999 US$649 US$579 US$549 US$479 US$399 US$379 US$329 US$199 US$159 US?
