AMD Zen And K12 CPU Designs Completed, Coming In 2016 And 2017 Respectively

Khalid Moammer
Posted Oct 19, 2015
263Shares
Share Tweet Submit

AMD’s next generation x86 and ARM high performance cores code named “Zen” and “K12” have reportedly taped out according to the linkedin profile of an AMD design engineer. Coincidentally AMD’s President and CEO Lisa Su had also announced at the company’s Q3 earnings call that the company’s design teams have successfully taped out several FinFET designs at multiple foundries in Q3 2015.

We reported in July that AMD had taped out two FinFET designs in Q2 2015. AMD then followed up in Q3 by taping out several other FinFET products at more than one foundry. AMD’s CEO did not go into detail with regards to which designs taped out on which specific process node or at which foundry. However AMD’s established foundry partners for FinFET products include TSMC with its 16FF+ process and Globalfoundries with its 14LPP process. So it’s a safe bet that these are the foundries Su was referring to, with Samsung standing in as a potential third player and a second source to Globalfoundries. Since Samsung and Globalfoundries have partnered on 14nm FinFET LPE and LPP, AMD could chose to go with either one.

AMD Q3 2015 Earnings Teleconference
Harlan Sur – JPMorgan – Analyst
Great, thanks for taking my question. So, Lisa, you gave us a relatively brief update on Zen. If you could just give us an update on Zen from a (technical difficulty) perspective? It’s a new core architecture, a new process technology. I think you taped out a couple of chips last quarter.
Any feedback on the performance or the yield metrics that gives the team confidence on the broad rollout of the different product families starting next year?

Lisa Su – Advanced Micro Devices, Inc. – President, CEO
Yes, so, Harlan, let me couch it this way. So as we stated in the financial analyst day, we had a target of 40% IPC performance of Zen over our previous generation. We believe we are on track for that.
Relative to process technology, we have taped out multiple products to multiple fabs in FinFET and we believe that they’re also on track in terms of overall ramp. So we continue to focus on both of those aspects, both the architecture and the process technology, but so far, so good.

AMD Zen And K12 High Performance X86 And ARM CPU Cores Taped Out

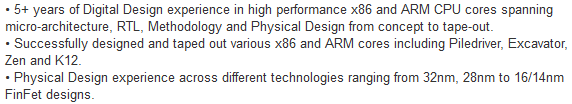

According to the profile of an AMD design engineer spotted by Matthias Waldhauer AKA Dresdenboy on Linkedin, both Zen and K12 have already taped out. You’ll find a screengrab of the relative information below.

What We Know So Far About AMD’s Zen Microarchitecture

We first broke the news about AMD’s next generation high performance core back in September of last year. At which point AMD’s then CEO Rory Read revealed the code name for the company’s upcoming high performance x86 CPU microarchitecture. Prior to that revelation we only had knowledge of Zen’s sister ARMv8 core code named K12.

RX 480 and GTX 1060 DX12 and Vulkan Overclocked Results

AMD ARM K12 Core High-Performance Custom
As of late AMD has been slightly more generous in providing detail about its brand new inception. Back in May AMD announced that it was preparing an entirely new line-up of FX CPUs and a brand new platform ‘AM4″. We learned that the new family of FX processors code named “Summit Ridge” would feature an entirely new socket and an updated feature set including DDR4 memory support. And more importantly we learned that the new platform would feature mainstream CPUs with “high core counts” – rumored to be up to eight cores – and “SMT” support.

Two months later we learned that AMD was also working on a monstrous High Performance Computing APU with 16 Zen cores and a huge integrated GPU in addition to stacked High Bandwidth Memory. We also learned that AMD is planning to introduce high performance server CPUs with up to 32 Zen CPU cores. Hearing about all of those different SKUs is jolly exciting but it was also quite frustrating as we had no idea what to expect from Zen. That is until AMD revealed a whopper at its Financial Analyst Day earlier this year, which is that Zen will have a 40% instruction per clock improvement over its predecessor “Excavator”.

AMD’s Zen CPU Core Coming in 2016 – Features FinFET Process, SMT And New Cache System

Zen will be AMD’s successor to the Bulldoze family of cores. It will be the first ever CPU core from the company to adopt simultaneous multithreading. It’s also the company’s first entirely new CPU core design following the Bulldozer family of cores which debuted in 2011 and was the company’s first ever design to feature clustered multithreading .

AMD x86 Zen Core Architecture

In addition to SMT, Zen also features a new high-bandwidth low latency cache system. A vital improvement over the previous generation of cores. Since subpar cache performance was one of the primary pitfalls of AMD’s Bulldozer CPU microarchitecture. The new CPU core is designed for and will be manufactured on an advanced FinFET process. Which would allow the CPU core to scale from low power mobile applications to high performance desktop and enterprise markets.

MSI's Enthusiast Grade Z270 Gaming M7 and Z270 Tomahwak Motherboards Unveiled - Triple M.2 Slots and Gorgeous Designs

Zen To Feature A 40% Instructions Per Clock Improvement Over Excavator

Mark Papermaster, AMD’s Chief Technology Officer revealed that the company plans to introduce a huge IPC improvement with Zen over AMD’s latest generation “Excavator” x86 core. A 40% increase in IPC would represent the largest jump in IPC ever for the company, an improvement which Mark Papermaster claimed he had not seen “anywhere in the industry”.

AMD 40 IPC Zen Zen+
Papermaster also made it a point to highlight that this 40% performance improvement figure is independent from the manufacturing process. So it’s a permanent architectural performance improvement that will always be present regardless of the process node.

Zen will be featured in AMD’s enthusiast CPU product line in 2016. Lisa Su confirmed that the new CPU architecture will be arriving to desktop FX CPUs first and to servers second. Succeeding Zen will be Zen+ cores. Which will feature evolutionary improvement over Zen. The company will introduce a new socket in 2016 dubbed AM4 that will house products spanning from high performance CPUs to mainstream APUs based on Zen and next generation FinFET GCN based GPUs.

The new family of high performance FX CPUs which appeared in previous leaks as “Summit Ridge” will feature SMT CPUs with high core counts and DDR4 memory support. The platform will be based on the new AM4 socket and a new yet undisclosed chipset. Unconfirmed leaks indicate that Summit Ridge will feature CPUs with up to 8 Zen cores and 12MB of L2 and L3 cache, but that is yet to be confirmed.

AMD Summit Ridge and Bristol Ridge Platforms:

WCCFTechAMD Summit RidgeAMD Bristol RidgeAMD FX "8000 Series"AMD A-Series "7000/8000-Series"
Product SegmentPerformance Desktop Processors "FX"Mainstream Desktop and Mobility APUPerformance Desktop Processors "FX"Mainstream Processors "Kaveri/Godavari"
Product Architecturex86 Zenx86 Excavatorx86 Bulldozer/Piledriverx86 Steamroller
Process Node14nm28nm32nm28nm
Max CPU Cores8484
GPU ArchitectureNoneGCN 3.0NoneSea Islands GCN
TDP95W95W125-220W95W
SocketAM4AM4/FP4AM3+FM2+
South BridgePromontoryPromontory/SOCSB950A78/A88X
North BridgeOn-dieOn-die990FXBoard
Memory SupportDDR4DDR3/DDR4DDR3DDR3
LaunchQ4 20162H 20162011-20162013-2016
