The flagship Navi based graphics cards have been highly anticipated ever since AMD introduced its first-generation RDNA lineup. While the first generation RDNA gave us a small glimpse of what we could expect from a flagship offering, the lineup never really introduced its own flagship variant & instead focused on the more mainstream performance-ended products. But two years later, the wait is finally over!

AMD has officially launched its Big Navi graphics card lineup and it's not just the biggest Navi GPU we have seen to date but also based on the 2nd Generation RDNA 2 architecture which delivers an impressive leap in performance per watt while offering a range of new features to put AMD Radeon ack in the high-end and enthusiast market segment.

Related StoryJason R. Wilson
Intel Sapphire Rapids Xeon CPUs To Feature Increased Power Saving On Linux Thanks To New Firmware



The AMD RDNA 2 architecture for its Big Navi Radeon RX 6800 and RX 6900 series graphics cards has a lot to offer. In addition to architectural enhancements, you can expect hardware-accelerated ray tracing, smart access memory, Infinity Cache, and a lot more features on-deck which make the lineup one of the most competitive enthusiast families that AMD has ever positioned against NVIDIA.

Some of the main features for the AMD Radeon RX 6000 series graphics cards include:

  • AMD Infinity Cache – A high-performance, last-level data cache suitable for 4K and 1440p gaming with the highest level of detail enabled. 128 MB of on-die cache dramatically reduces latency and power consumption, delivering higher overall gaming performance than traditional architectural designs.
  • AMD Smart Access Memory – An exclusive feature of systems with AMD Ryzen 5000 Series processors, AMD B550 and X570 motherboards, and Radeon RX 6000 Series graphics cards. It gives AMD Ryzen processors greater access to the high-speed GDDR6 graphics memory, accelerating CPU processing and providing up to a 13-percent performance increase on an AMD Radeon RX 6800 XT graphics card in Forza Horizon 4 at 4K when combined with the new Rage Mode one-click overclocking setting.
  • Built for Standard Chassis – With a length of 267mm and 2x8 standard 8-pin power connectors, and designed to operate with existing enthusiast-class 650W-750W power supplies, gamers can easily upgrade their existing large to small form factor PCs without additional cost.

AMD Radeon RX 6800 XT "Big Navi 21 XT" GPU Powered 16 GB Graphics Card Specifications

The AMD Radeon RX 6800 XT will come packed with the Navi 21 XT GPU which is a cut-down SKU featuring 72 Compute Units or 4608 SPs. The card will also feature 16 GB of GDDR6 memory across a 256-bit bus interface, a 512 GB/s total bandwidth, and clock speeds of 2015 MHz base and 2250 MHz boost at reference specs. The AMD Radeon RX 6800 XT also packs 72 Ray Accelerators which are dedicated to real-time raytracing workloads. The card will feature a based TBP of 300W with factory-overclocked models pushing it above 350W and will arrive at a later date.

In addition to the standard memory, the Radeon RX 6800 series graphics cards will also feature 128 MB of Infinity Cache on the GPU die. The cache will help boost bandwidth for higher performance at resolutions beyond 1080p HD. The 128 MB Infinity Cache boosts the standard 512 GB/s bandwidth by 3.25x, delivering an effective bandwidth of up to 1.664 TB/s across all Big Navi GPU based graphics cards.

Related StoryHassan Mujtaba
Sapphire First To Launch 8 GB AMD Radeon RX 6500 XT Graphics Card
amd-radeon-rx-6000-series-graphics-cards_rdna-2-big-navi-gpu_radeon-rx-6800-xt_1
2020-10-28_21-25-38

In terms of performance, the AMD Radeon RX 6800 XT is shown to compete against the GeForce RTX 3080 graphics card. The card features a 20W lower total board power & delivers better GPU performance in several AAA titles using the best API (Vulkan / DirectX 12). AMD is also bringing its Rage-mode back which is an automatic overclocking tool within its Radeon Software suite that delivers even higher performance along with a nifty new feature known as Smart Access. Gains of up to 13% were showcased with the said features as can be seen below.

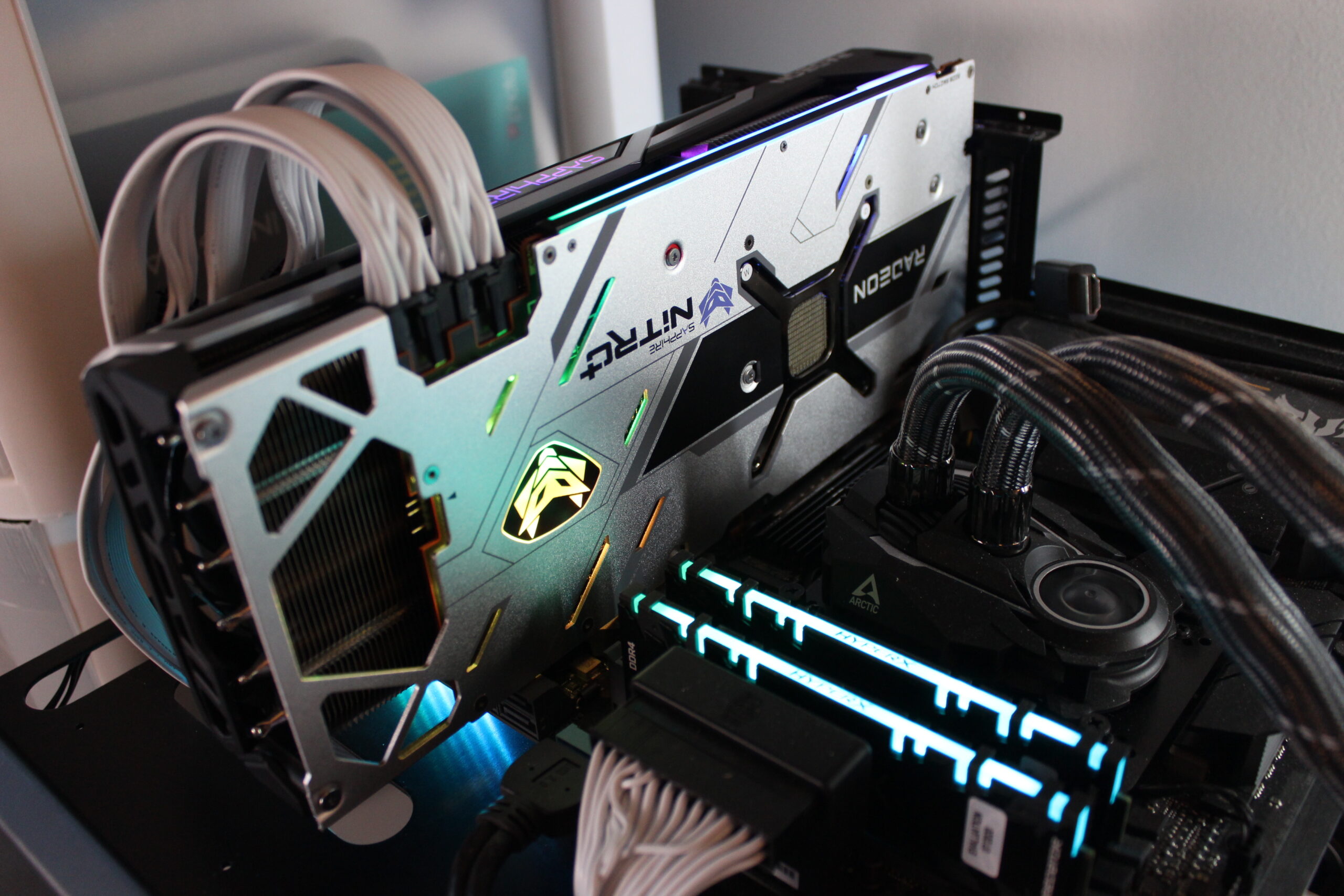

So for this review, I will be taking a look at the SAPPHIRE Nitro+ Radeon RX 6800 XT. The SAPPHIRE Nitro+ Radeon RX 6800 XT comes is said to feature an MSRP of around $770 US so that's just over a $100 US premium over the 649 US reference MSRP. At this price, you get a triple-fan cooling solution and a factory overclock out of the box.

AMD Radeon RX 6000 Series "RDNA 2" Graphics Card Lineup:

Graphics CardAMD Radeon RX 6950 XTAMD Radeon RX 6900 XTAMD Radeon RX 6800 XTAMD Radeon RX 6800AMD Radeon RX 6750 XTAMD Radeon RX 6700 XTAMD Radeon RX 6700AMD Radeon RX 6650 XTAMD Radeon RX 6600 XTAMD Radeon RX 6600AMD Radeon RX 6500 XTAMD Radeon RX 6400
GPUNavi 21 KXTXNavi 21 XTXNavi 21 XTNavi 21 XLNavi 22 KXTNavi 22 XTNavi 22 XLNavi 23 KXTNavi 23 (XT)Navi 23 (XL)Navi 24 (XT)Navi 24 (XL)
Process Node7nm7nm7nm7nm7nm7nm7nm7nm7nm7nm6nm6nm
Die Size520mm2520mm2520mm2520mm2336mm2336mm2336mm2237mm2237mm2237mm2107mm2107mm2
Transistors26.8 Billion26.8 Billion26.8 Billion26.8 Billion17.2 Billion17.2 Billion17.2 Billion11.06 Billion11.06 Billion11.06 Billion5.4 Billion5.4 Billion
Compute Units808072604040363232281612
Stream Processors51205120460838402560256023042048204817921024768
TMUs/ROPs320 / 128320 / 128288 / 128240 / 96160/64160/64144/64128/64128/64112/6464/3248/32
Game Clock2116 MHz2015 MHz2015 MHz1815 MHz2495 MHz2424 MHz2330 MHz2410 MHz2359 MHz2044 MHz2610 MHz2039 MHz
Boost Clock2324 MHz2250 MHz2250 MHz2105 MHz2600 MHz2581 MHz2495 MHz2635 MHz2589 MHz2491 MHz2815 MHz2321 MHz
FP32 TFLOPs23.80 TFLOPs23.04 TFLOPs20.74 TFLOPs16.17 TFLOPs13.31 TFLOPs13.21 TFLOPs11.50 TFLOPs10.79 TFLOPs10.6 TFLOPs9.0 TFLOPs5.7 TFLOPs3.5 TFLOPs
Memory Size16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache16 GB GDDR6 +128 MB Infinity Cache12 GB GDDR6 + 96 MB Infinity Cache12 GB GDDR6 + 96 MB Infinity Cache10 GB GDDR5 + 80 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache8 GB GDDR6 + 32 MB Infinity Cache4 GB / 8 GB GDDR6 + 16 MB Infinity Cache4 GB GDDR6 + 16 MB Infinity Cache
Memory Bus256-bit256-bit256-bit256-bit192-bit192-bit160-bit128-bit128-bit128-bit64-bit64-bit
Memory Clock18 Gbps16 Gbps16 Gbps16 Gbps18 Gbps16 Gbps16 Gbps17.5 Gbps16 Gbps14 Gbps18 Gbps14 Gbps
Bandwidth576 GB/s512 GB/s512 GB/s512 GB/s432 GB/s384 GB/s320 GB/s280 GB/s256 GB/s224 GB/s144 GB/s112 GB/s
TDP335W300W300W250W250W230W220W176W160W132W107W53W
Price$1099 US$999 US$649 US$579 US$549 US$479 USTBD$399 US$379 US$329 US$199 US$159 US?

In case you want to read our full AMD RDNA 2 GPU architecture deep dive and Radeon RX 6800 XT reference model review, head over to this link.
