GALAXY GTX 1060 HOF Edition Pictured With An Impressive VRM Phase Design And Higher Clock Speeds

Omar Sohail
Posted Aug 6, 2016
101Shares
Share Tweet Submit

The beauty of GALAXY GTX 1060 HOF is definitely unparalleled and its specifications in contrast to the reference model of the GPU are thoroughly impressive as well. We would expect no less from a custom-made GPU at all.

GALAXY GTX 1060 HOF Features A 6 + 2 Phase VRM Design With A Massive Cooler Supplemented By A Triple-Fan Cooling Solution

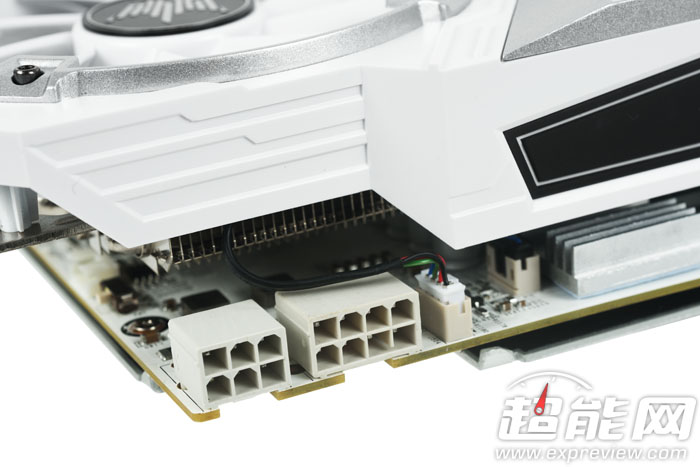

One of the things that you’d immediately notice about the GALAXY GTX 1060 HOF is the power connectors that it has been incorporated with. With a 8 + 6-pin power connector configuration, the large current draw of the graphics card will also mean that it will provide a serious overclocking headroom to enthusiasts out there, and we are glad to see that a 6 + 2 phase VRM design exists on the GPU too.

Galaxy GTX 1060 (1)

Coming to the clock speeds of GALAXY GTX 1060 HOF, the base clock speed of the GPU is 1582MHz with a Boost clock speed of 1797MHz. There’s a detailed table given below highlighting the primary specifications of the reference model of GTX 1060, so you will notice that there are a vast majority of differences separating the two models.

Galaxy GTX 1060 (7)

As for the primary specifications of the GPU itself, GTX 1060’s killer selling point is its affordable price tag and the performance per dollar associated with that price tag. It is not just faster than AMD’s RX 480 but also faster than GeForce GTX 980, and on top of that, its 6GB video frame buffer will provide a nice little solution if you want to game at the 1440p or 4K resolution.

Galaxy GTX 1060 (3)

Coming to the exact metrics, the GeForce GTX 1060 is said to be 15 percent better than the Radeon RX 480 at stock speeds, and up to 25 percent better in VR Gaming thanks to NVIDIA’s Simultaneous Multi-Projection Technology and more than 40 percent better in terms of power efficiency.

With the announcement of GTX 1060, gamers might be compelled to purchase this GPU, although the 8GB video RAM on RX 480 is certainly an attractive feature of the latter. What did you think of the specifications of this GPU? Tell us your thoughts right away.

NVIDIA GeForce 10 Pascal Family:

Graphics Card Name NVIDIA GeForce GTX 1050NVIDIA GeForce GTX 1050 Ti?NVIDIA GeForce GTX 1060 3 GBNVIDIA GeForce GTX 1060 3 GBNVIDIA GeForce GTX 1060 6 GBNVIDIA GeForce GTX 1070NVIDIA GeForce GTX 1080NVIDIA Titan X
Graphics CoreGP107GP107GP106GP104GP106GP104GP104GP102
Process Node14nm FinFET14nm FinFET16nm FinFET16nm FinFET16nm FinFET16nm FinFET16nm FinFET16nm FinFET
Die Size132mm2132mm2200mm2314mm2200mm2314mm2314mm2471mm2
Transistors3.3 Billion3.3 Billion4.4 Billion7.2 Billion4.4 Billion7.2 Billion7.2 Billion12 Billion
CUDA Cores640 CUDA Cores768 CUDA Cores1152 CUDA Cores1152 CUDA Cores1280 CUDA Cores1920 CUDA Cores2560 CUDA Cores3584 CUDA Cores
Base Clock1354 MHz1290 MHz1506 MHz1506 MHz1506 MHz1506 MHz1607 MHz1417 MHz
Boost Clock1455 MHz1392 MHz1708 MHz1708 MHz1708 MHz1683 MHz1733 MHz1530 MHz
FP32 Compute1.8 TFLOPs2.1 TFLOPs4.0 TFLOPs4.0 TFLOPs4.4 TFLOPs6.5 TFLOPs9.0 TFLOPs11 TFLOPs
VRAM2 GB GDDR54 GB GDDR53 GB GDDR53 GB GDDR56 GB GDDR58 GB GDDR58 GB GDDR5X12 GB GDDR5X
Bus Interface 128-bit bus128-bit bus192-bit bus192-bit bus192-bit bus256-bit bus256-bit bus384-bit bus
Power ConnectorNoneNoneSingle 6-Pin PowerSingle 6-Pin PowerSingle 6-Pin PowerSingle 8-Pin PowerSingle 8-Pin Power8+6 Pin Power
TDP75W75W120W120W120W150W180W250W
Display Outputs1x Display Port 1.4
1x HDMI 2.0b
1x DVI
1x Display Port 1.4
1x HDMI 2.0b
1x DVI
3x Display Port 1.4
1x HDMI 2.0b
1x DVI
3x Display Port 1.4
1x HDMI 2.0b
1x DVI
3x Display Port 1.4
1x HDMI 2.0b
1x DVI
3x Display Port 1.4
1x HDMI 2.0b
1x DVI
3x Display Port 1.4
1x HDMI 2.0b
1x DVI
3x Display Port 1.4
1x HDMI 2.0b
1x DVI
Launch DateOctober 2016October 2016September 2016TBD13th July 201610th June 201627th May 20162nd August 2016
Launch Price$109 US$139 US$199 US$199 US$249 US$379 US$599 US$1200 US
